THOMAS SJ CRABTREE,1,2 Peter Winocour,2 Ken Darzy,2 Suzanne Phillips,3 Alison Evans,3 Anurita Rohilla,4 Rajeev Raghavan,5 Devesh Sennik,6 Alex Bickerton,7 Iskandar Idris,8 Mahender Yadagiri,9 Robert EJ Ryder,9 ABCD Canagliflozin Audit Contributors
1 University Hospitals of Derby and Burton NHS Trust; University of Nottingham; Sandwell and West Birmingham Hospitals NHS Trust, UK
2 Queen Elizabeth II Hospital, East and North Hertfordshire NHS Trust, UK
3 Gloucestershire Hospitals NHS Foundation Trust, UK
4 West Essex CCG, UK
5 Wolverhampton Diabetes Endocrine Centre, The Royal Wolverhampton NHS Trust, UK
6 The Princess Alexandra Hospital NHS Trust, UK
7 Yeovil District Hospital NHS Foundation Trust, UK
8 University Hospitals of Derby and Burton NHS Trust; University of Nottingham, UK
9 Sandwell and West Birmingham Hospitals NHS Trust, UK
Address for correspondence: Dr Thomas SJ Crabtree
Department of Diabetes, Royal Derby Hospital, Uttoxeter Road, Derby, DE22 3NE
E-mail: t.crabtree@nhs.net
https://doi.org/10.15277/bjd.2020.258
Introduction: Canagliflozin was initially approved for use in the UK in March 2013. Randomised control trial evidence has demonstrated multiple beneficial effects. Many of these are present at initial follow-up and within 26 weeks of randomised control trial data. Our aim was to assess whether the beneficial effects of canagliflozin on multiple clinical and biochemical parameters occurred prior to first follow-up and, if so, whether these continued to improve or simply persisted at second follow-up.
Methods: Data were extracted from the ABCD nationwide canagliflozin audit to include a minimum dataset of a baseline value and one (or two) follow-ups for each value.
Results: A total of 1,214 patient datasets were identified and used in the analysis: mean±SD age 60.1±10.6 years; median duration of diabetes 8 (IQR 2.4–12.6 years); baseline HbA1c 75.1±17.4 mmol/mol (9.0±1.59%) and weight 97.8±22.0 kg. 68.3% of the patients were Caucasian where this was known (n=183). At first follow-up (median 0.7 years) from baseline: change in HbA1c −9.3 mmol/mol (95% CI −8.2 to −10.4; p<0.0001), weight −2.3 kg (95% CI −1.9 to −2.5; p<0.0001); BMI −0.7 kg/m2 (95% CI −0.6 to −0.8; p<0.0001); alanine aminotransferase −2 U/L (95% CI −1.3 to −2.7; p<0.0001); eGFR −0.9 mL/min/1.73 m2 (95% CI −0.4 to −1.4; p<0.001); systolic blood pressure (BP) −2.6 mmHg (95% CI −1.6 to −3.5; p<0.0001) and diastolic BP −0.9 mmHg (95% CI −0.2 to −1.6; p<0.001). Significant differences persisted comparing second follow-up (median 1.2 years) to baseline, but no further significant changes were noted between first follow-up and second follow-up other than in weight and BMI with further change in weight −0.65 kg (95% CI −0.2 to −1.1; p=0.047).
Conclusion: The improvements following canagliflozin in this real-world cohort seem to occur within the first 0.7 years of treatment, which is similar to randomised controlled trial data. These improvements seem to be maintained over the next 6 months, with significant further weight loss occurring between 0.7 years and 1.2 years, although the mechanism of this is unclear and might be due to confounders. More evidence on this point is needed.
Br J Diabetes 2020;20:113-116
Key words: canagliflozin, real-world, observational, HbA1c, follow-up
The Association of British Clinical Diabetologists (ABCD) canagliflozin audit was originally launched in January 2016 and was the second nationwide sodium-glucose linked transporter 2 inhibitor (SGLT2) audit to be launched in the UK following the launch of the dapagliflozin audit in 2015. Since the launch of the tool, over 100 anonymised clinical datasets have been collected allowing us to effectively assess the use of these medications in a real-world cohort. More recently, data have been provided by Clinical Commissioning Groups on their use of the drugs, allowing us to include larger numbers and produce more robust analyses as a result.
Canagliflozin was initially approved in the UK in March 2013.1 Randomised controlled trials including meta-analyses on its use have shown multiple beneficial effects including:
Many of the studies were performed over different time frames with some phase III trials versus placebo conducted over 24 weeks and some extending up to 104 weeks in open-label extensions. Notably, many of the outcomes of these studies tend to be fairly similar despite longer exposure to the drugs, with the understandable exception of clinical cardiorenal endpoints. Forst et al demonstrated broadly similar outcomes with canagliflozin with either 100 mg or 300 mg added to metformin and/or pioglitazone at both 26 and 52 weeks with HbA1c changes of −0.89% and −0.92%, respectively.3 This is echoed in further clinical parameters, with changes from baseline at 26 weeks sustained at 52 weeks but with no further statistically significant improvements.
As further evidence, comparing just two different trials, a trial of 26 weeks duration adding canagliflozin, sitagliptin or placebo to metformin monotherapy showed HbA1c reductions of 0.73% and weight reductions of 3.3 kg.4 These are broadly similar to the results of one trial over 52 weeks which reported a 0.82% reduction in HbA1c from baseline and weight reductions of 4.2 kg.2 This particular study was subsequently extended to 104 weeks and HbA1c reductions were maintained at −0.65% from baseline.
Data were downloaded from the ABCD canagliflozin audit tools as well as anonymised data from five Clinical Commissioning Groups. All patients with a minimum dataset of a baseline value and one or two further values following commencement of canagliflozin were included in the analysis for each variable. Variables assessed included: HbA1c (mmol/mol and %), weight, body mass index (BMI), estimated glomerular filtration rate (eGFR), systolic and diastolic blood pressure (SBP and DBP), alanine aminotransferase levels (ALT), triglycerides and total cholesterol.
Changes in the above variables between baseline and first return to clinic and second return to clinic were analysed to determine whether further changes (eg, further HbA1c reductions or weight loss) are achieved with prolonged use of canagliflozin or whether any benefit occurs over a more immediate period following commencement.

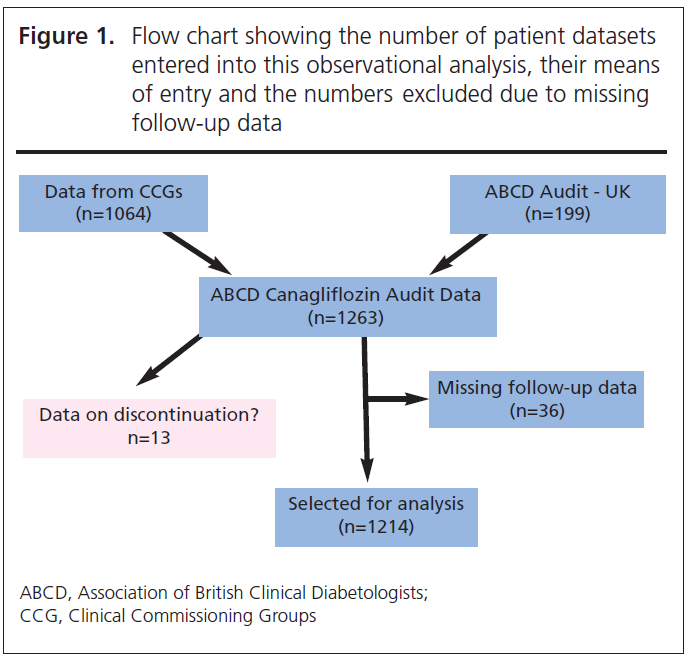

Data were screened for possible erroneous values. Those without the necessary follow-up data were also excluded. A flow chart showing the inclusion and exclusion of patient datasets is given in Figure 1.
Statistical analysis
All data were assessed for skewness. Data following a normal (parametric) distribution were analysed using paired t-tests. Data following a non-parametric distribution were analysed using Wilcoxon signed rank tests. Analyses were performed using Stata SE 16.

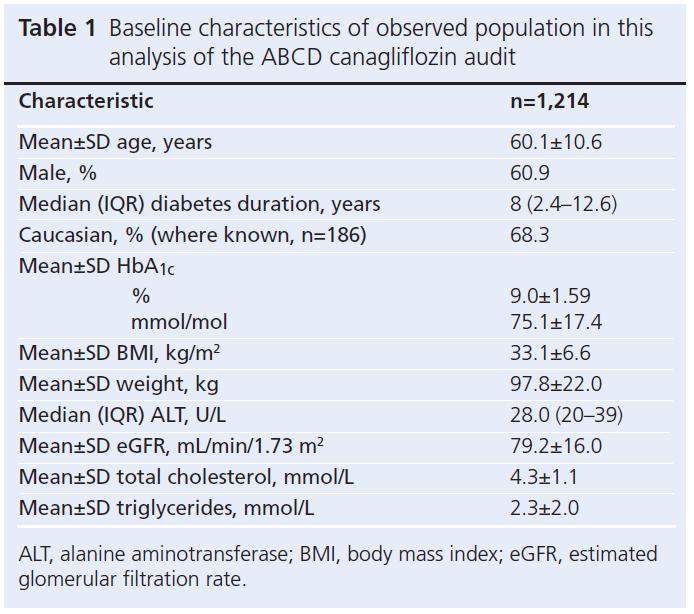

A total of 1,214 individual patient datasets were identified for inclusion with the minimum required dataset of baseline plus one or two follow-up entries with data for at least one variable. The population had a mean±SD age of 60.1±10.6 years; 60.8% were male. Due to missing data, ethnicity was available for just 186 of those included of which 68.3% (n=127) were classified as ‘white British’. The mean±SD baseline HbA1c was 9.0±1.59% or 75.1±17.4 mmol/mol. The mean weight at baseline was 97.8±22.0 kg with a BMI of 33.1±6.6 kg/m2. The median duration of diabetes at baseline was 8 years (IQR 2.4–12.6). The remainder of the baseline characteristics of those included in the observed population are shown in Table 1.
Baseline characteristics of those discontinuing canagliflozin (n=13) were broadly similar to the included population. Unfortunately, due to the nature of the data, reasons and numbers of those who discontinued treatment were not available.

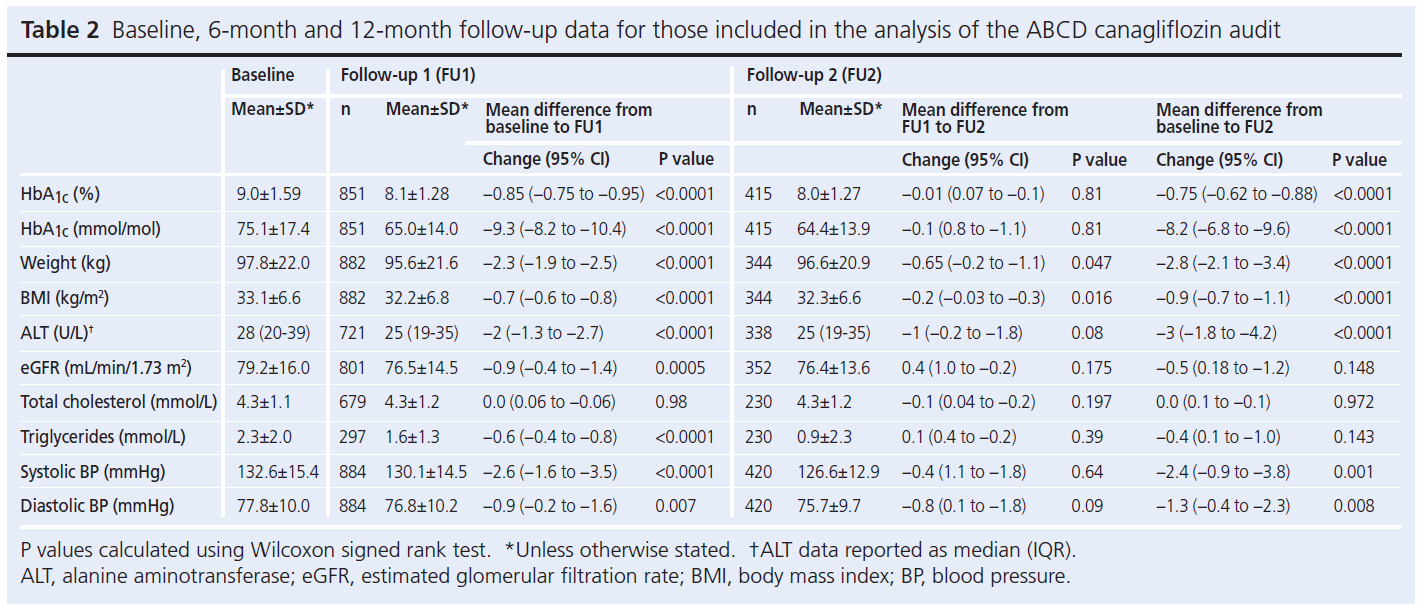

Median time between baseline and first follow-up was 0.7 years (IQR 0.5–0.9 years) and to second follow-up was 1.2 years (IQR 1–1.4 years). The results from the first and second follow-ups including the numbers of patients in each analysis, mean difference, confidence intervals and statistical significance (derived from paired t-test or Wilcoxon signed rank test dependent on skewness) for all parameters are shown in Table 2. ALT levels were analysed by non-parametric methods due to a skewness of 2.35 indicating a non-normal distribution. No other parameters demonstrated significant skew to warrant non-parametric analysis.
The results demonstrate significant decreases in HbA1c, weight, BMI, ALT, SBP and DBP at first follow-up, with these changes persisting at second follow-up. However, no further statistically significant changes were observed between the first and second follow-ups in any parameter other than weight and BMI. Of note, a significant reduction in triglycerides was noted at first follow-up but not at second follow-up.
These data demonstrated significant improvements in multiple parameters at the first follow-up visit, after approximately 0.7 years, which persisted but did not continue to improve at second follow-up for the majority except weight and BMI. A significant effect in reducing triglycerides was noted in this analysis, which has not been noted previously, although this effect was no longer present at 1 year.
Our results are comparable to randomised controlled trial data which showed that initial changes in HbA1c persisted but clinically significant further decreases were not observed.2–4 Comparing our data with that included in the meta-analysis of randomised controlled trials by Xiong et al at approximately 26 weeks,8 our cohort showed similar reductions in weight of −2.3 kg versus −2.23 kg in the meta-analysis and HbA1c (only reported by Xiong et al as %, −0.85% vs −0.7% in the meta-analysis). Reductions in SBP were greater in the meta-analysis (−4.26 mmHg) than in our real-world cohort of patients (−2.6 mmHg). Baseline characteristics of those included were not commented on in the meta-analysis so it is difficult to compare with the characteristics of our patients, although it seems likely that real-world usage will include many patients who would have been excluded from participation in one or more of the randomised controlled trials included in the meta-analysis.
It should be highlighted that the main limitations are the inability to adjust for some confounding factors such as concomitant medications or other comorbidity as these data were not captured within the scope of this observational audit of routine clinical data. It may therefore be that some of the results are affected by confounding factors, but we are reassured by the relative similarity of our results to already published randomised controlled trial data.
Interestingly, continuing improvements in weight and BMI were noted. This may be due to ongoing glycosuria and thus calorie loss but, as data on the presence of glycosuria were not collected, this is difficult to comment on directly. It may be that there is an alternative explanation or confounder such as a concomitant increase in exercise or change in diet which is difficult to appreciate using an observational dataset.
Our data are more likely to be generalisable to a UK population with diabetes and will include people with a mixture of comorbidity, extremes of weight and HbA1c and other factors which would not have been included in randomised controlled trials.
Our analysis of this real-world observational dataset closely mirrors the results from many of the recent randomised controlled trials on canagliflozin use. This is encouraging evidence that the outcomes reported in such trials will translate well into a UK-based diabetes cohort. Most of the improvements in the variables we assessed seemed to occur over a relatively short period following commencement, but did not continue to improve significantly further after this other than for weight (and BMI). More real-world analyses are planned and should try to include analysis of adverse events or reasons for discontinuation and may focus on aspects such as ALT reductions, non-alcoholic fatty liver disease outcomes or impact on lipid profiles.
Conflict of interest TSJC reports grants and personal fees from NovoNordisk, grants from Sanofi, outside the submitted work. REJR has received speaker fees, and/or consultancy fees and/or educational sponsorships from AstraZeneca, BioQuest, GI Dynamics, Janssen and Novo Nordisk. RR reports: I have received consultation and/or lecture fees or unrestricted travel grants from Novo Nordisk, Eli Lilly, Boehringer Ingelheim, AstraZeneca, Takeda, Napp, Abbott Diabetes. I have had no inducements or direct sponsorship in relation to this study. PW reports personal fees from Advisory Board work with Napp, outside the submitted work. DS reports personal fees from Boehringer Ingelheim, personal fees from Sanofi, personal fees from Novo Nordisk, personal fees from AstraZeneca, personal fees from Merck, personal fees from Eli Lilly, outside the submitted work. MY, SP, AB, AE, KD, AR have nothing to disclose.
Funding The ABCD canagliflozin audit programme is funded by an unrestricted grant from Napp Pharmaceuticals.
Acknowledgement The authors would like to thank the audit contributors (see Appendix 1 at www.bjd-abcd.com)
1. Johnson & Johnson. U.S. FDA approves INVOKANA™ (Canagliflozin) for the treatment of adults with type 2 diabetes. 2013. Available from: https://www.jnj.com/media-center/press-releases/us-fda-approves-invokana-canagliflozin-for-the-treatment-of-adults-with-type-2-diabetes (accessed 13 Jan 2020).
2. Cefalu WT, Leiter LA, Yoon K-H, et al. Efficacy and safety of canagliflozin versus glimepiride in patients with type 2 diabetes inadequately controlled with metformin (CANTATA-SU): 52 week results from a randomised, double-blind, phase 3 non-inferiority trial. Lancet 2013;382(9896):941–50. https://doi.org/10.1016/S0140-6736(13)60683-2
3. Forst T, Guthrie R, Goldenberg R, et al. Efficacy and safety of canagliflozin over 52 weeks in patients with type 2 diabetes on background metformin and pioglitazone. Diabetes Obes Metab 2014;16(5):467–77. https://doi.org/10.1111/dom.12273
4. Lavalle-Gonzalez FJ, Januszewicz A, Davidson J, et al. Efficacy and safety of canagliflozin compared with placebo and sitagliptin in patients with type 2 diabetes on background metformin monotherapy: a randomised trial. Diabetologia 2013;56(12):2582–92. https://doi.org/10.1007/s00125-013-3039-1
5. Rodbard HW, Peters AL, Slee A, et al. The effect of canagliflozin, a sodium glucose cotransporter 2 inhibitor, on glycemic end points assessed by continuous glucose monitoring and patient-reported outcomes among people with type 1 diabetes. Diabetes Care 2017;40(2):171–80. https://doi.org/10.2337/dc16-1353
6. Stenlof K, Cefalu WT, Kim K-A, et al. Long-term efficacy and safety of canagliflozin monotherapy in patients with type 2 diabetes inadequately controlled with diet and exercise: findings from the 52-week CANTATA-M study. Curr Med Res Opin 2014;30(2):163–75. https://doi.org/10.1185/03007995.2013.850066
7. Wilding JP, Charpentier G, Hollander P, et al. Efficacy and safety of canagliflozin in patients with type 2 diabetes mellitus inadequately controlled with metformin and sulphonylurea: a randomised trial. Int J Clin Pract 2013;67(12):1267–82. https://doi.org/10.1111/ijcp.12322
8. Xiong W, Xiao MY, Zhang M, Chang F. Efficacy and safety of canagliflozin in patients with type 2 diabetes: a meta-analysis of randomized controlled trials. Medicine (Baltimore) 2016;95(48):e5473. https://doi.org/10.1097/MD.0000000000005473
9. Perkovic V, Jardine MJ, Neal B, et al. Canagliflozin and renal outcomes in type 2 diabetes and nephropathy. N Engl J Med 2019;380(24):2295–306. https://doi.org/10.1056/NEJMoa1811744
10. Perkovic V, de Zeeuw D, Mahaffey KW, et al. Canagliflozin and renal outcomes in type 2 diabetes: results from the CANVAS program randomised clinical trials. Lancet Diabetes Endocrinol 2018;6(9):691–704. https://doi.org/10.1016/S2213-8587(18)30141-4
11. Cusi K, Bril F, Barb D, et al. Effect of canagliflozin treatment on hepatic triglyceride content and glucose metabolism in patients with type 2 diabetes. Diabetes Obes Metab 2019;21(4):812–21. https://doi.org/10.1111/dom.13584
12. Gautam A, Agrawal PK, Doneria J, Nigam A. Effects of canagliflozin on abnormal liver function tests in patients of type 2 diabetes with non-alcoholic fatty liver disease. J Assoc Physicians India 2018;66(8):62–6.
13. Bajaj HS, Brown RE, Bhullar L, Sohi N, Kalra S, Aronson R. SGLT2 inhibitors and incretin agents: associations with alanine aminotransferase activity in type 2 diabetes. Diabetes Metab 2018;44(6):493–9. https://doi.org/10.1016/j.diabet.2018.08.001
14. Itani T, Ishihara T. Efficacy of canagliflozin against nonalcoholic fatty liver disease: a prospective cohort study. Obes Sci Pract 2018;4(5):477–82. https://doi.org/10.1002/osp4.294
15. Leiter LA, Forst T, Polidori D, Balis DA, Xie J, Sha S. Effect of canagliflozin on liver function tests in patients with type 2 diabetes. Diabetes Metab 2016;42(1):25–32. https://doi.org/10.1016/j.diabet.2015.10.003
