Stephan Matthaei
Diabetes-Zentrum Quakenbrück, Fachabteilung für Diabetologie, Endokrinologie & Stoffwechselerkrankungen am Christlichen Krankenhaus, Quakenbrück, Germany
Address for correspondence: Professor Stephan Matthaei
Diabetes-Zentrum Quakenbrück, Fachabteilung für Diabetologie Endokrinologie & Stoffwechselerkrankungen am Christlichen Krankenhaus, Quakenbrück, Germany.
Tel: +49 (0)5431 15 2830
E-mail: S.Matthaei@ckq-gmbh.de
Br J Diabetes Vasc Dis 2014;14:148-152
http://dx.doi.org/10.15277/bjdvd.2014.045
Abstract
Glycated haemoglobin (HbA1c) is a measure of mean blood glucose levels over time. It is not a good indicator of day-to-day diabetes control and may not reveal variability in blood glucose. Continuous glucose monitoring (CGM) enables the real-time monitoring of glycaemic variability, potentially addressing issues such as episodic hypoglycaemia, hyperglycaemia, and the risk of complications associated with significant glycaemic excursions. Given the quantity of data produced by CGM, there is a need for standardised analysis to enable patterns of blood glucose variation to be revealed. This need has been addressed by the development of specific software – the Ambulatory Glucose Profile (AGP) – which combines inputs from multiple days of CGM data and collates them into a single 24-hour period, making glycaemic patterns more recognisable. In this study, European diabetologists were asked to evaluate the AGP software and report their findings by means of a questionnaire. The results support the use of AGP for analysis of patient glucose data and informing subsequent treatment decisions. When shared with the patient, the AGP results were found to be an effective basis for education, helping achieve better understanding of glycaemic variability and increasing involvement in diabetes self-management.
Key words: Ambulatory Glucose Profile, glucose variability, glucose monitoring, glucose data, continuous glucose monitoring, hypoglycaemia risk assessment, glycaemic excursions
Since the publication of the DCCT, HbA1c has been considered the gold standard for measuring diabetes control,1,2 as its correlation with the incidence -of microvascular and macrovascular complications has been conclusively established in several large, randomised studies.3-6 Given that red blood cells have a life-span of approximately 120 days, HbA1c is generally considered to reflect mean blood glucose over this period and is therefore not a good indicator of day-to-day diabetes control.1 This is of particular importance when considering the need to avoid significant extremes of glucose variability and the associated risk of hypoglycaemia or hyperglycaemia.1,7,8 There is also evidence that glycaemic variability may have a greater association with the risk of diabetic complications than mean HbA1c. The DCCT study found that, even when HbA1c was comparable, the risk of progression of retinopathy was significantly greater in conventionally treated patients compared with intensively treated patients after 5 to 9 years (p<0.01).9,10 One potential explanation for this outcome is the greater frequency and magnitude of glycaemic excursions in conventionally treated patients.9 Reducing glucose variability may therefore be an important aspect of effective glucose control.9
A significant challenge to effectively understanding glycaemic variability is to find an accurate and standardised method of glucose data collection and analysis.1 CGM offers the possibility of recording diurnal glucose patterns11 although the data produced by such devices is often unmanageable. There is, therefore, a need for standardised analysis that is easy to understand and which will reveal the important patterns of blood glucose variation. Mazze et al.,12 in collaboration with the IDC, Minneapolis, Minnesota, have produced a software approach called the AGP.13 AGP standardises clinical terms and key metrics and presents glucose data visually, making it easy to interpret.

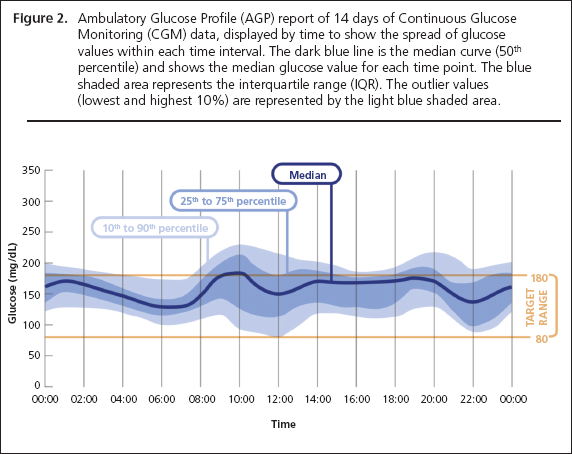

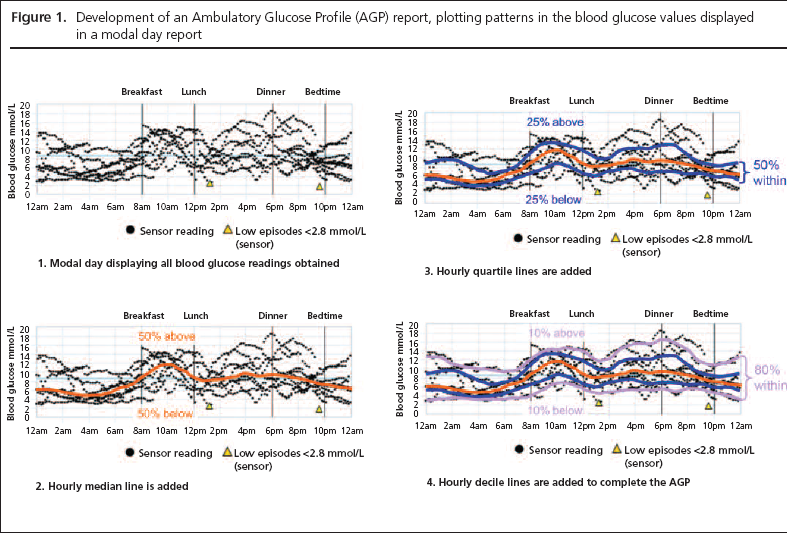

To produce an AGP report, the software combines all CGM data from several days or weeks into a single 24-hour period. The programme then applies mathematical algorithms to help present glycaemic patterns.11 The first component of the AGP to be plotted is the median curve (50th percentile), which shows the median glucose value for every time point and is a representation of glucose stability. The curves immediately above and below the median curve define the IQR. The IQR is used to represent glucose variability as it shows the span of 50% of glucose values. The 10th and 90th percentile curves – the two curves on either side of the IQR – track glucose excursions. Thus, when the five curves appear close, there is a fairly high degree of certainty that the variability will be low. By representing the glucose values in this way, the AGP visually and statistically portrays overall diurnal glucose characteristics of glucose exposure, variability and stability, and hence it is possible to rapidly determine whether there is an underlying pattern (Figures 1 and 2).
Bergenstal et al. undertook an analysis of the AGP software by asking a panel of US diabetes specialists for feedback on its clinical utility.13 Based on their conclusions and recommendations, the US FDA announced its support for ‘more standardised reporting and analysis of data and information obtained from current glucose monitoring devices.14 AGP has recently become available for commercial use in Europe and so an expert panel of European diabetologists was set up to further evaluate this approach. The methods and results of this are described here.
A working group of diabetes specialists from France, Germany, Italy, Spain, and United Kingdom was established. Each specialist was provided with a FreeStyle Navigator II (Abbott Diabetes Care, Alameda, California, USA), consisting of CGM sensor, transmitter and receiver15 and was asked to analyse data using AGP Software extension to the FreeStyle CoPilot Health Management System software (Abbott Diabetes Care). Patients with type 1 and type 2 diabetes were included. No specific protocol was set and the working group members were asked to:
• Assess AGP in diabetes patients for whom CGM review would normally be indicated
• Assess the benefit of acquiring 14 days of continuous data per patient
A monitoring period of 14 days was selected based on evidence that a minimum of 14 days of CGM is sufficient for identification of glucose patterns16 and that this period of sensor wear is achievable with the FreeStyle Navigator II.17
Feedback was gathered via a structured online research questionnaire following 3 months of experience. This research included questions on patient demographics to understand in which clinical situations AGP was examined in, and whether both insulin and non-insulin-treated patients were assessed using the technique. The results were analysed and presented to an expert panel of six diabetes specialists for further consideration.

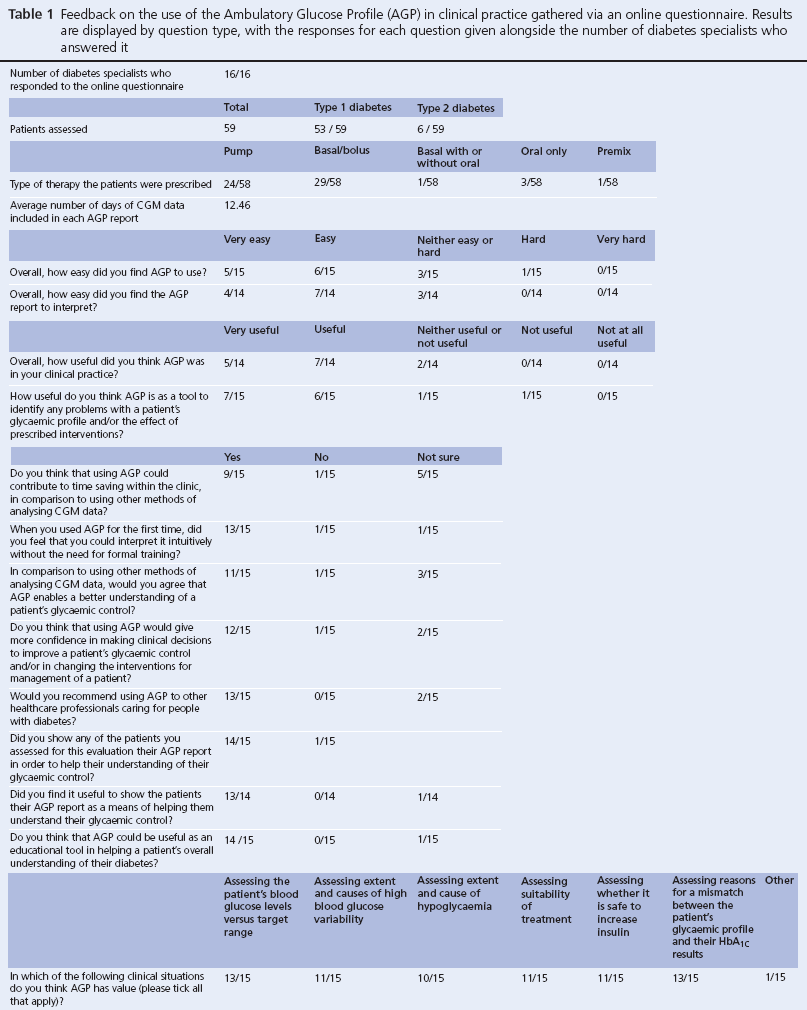

In the working group 16 diabetes specialists provided data from 59 patients. Of these, 53 patients had type 1 diabetes and the average number of days of data collected per patient was 12.46 (Table 1). Although no protocol was set to dictate specific patient types that should be involved, AGP was mostly used for those who exhibited poor glycaemic regulation and unpredictable glucose excursions. This included patients who had previously experienced unidentified hypoglycaemia or overnight hypoglycaemia, and whose HbA1c did not match with their SMBG values.
The following is a summary of the most informative statistics and responses from the online questionnaire that the working group was asked to complete.
Ease of use and interpretation
Overall, 11/15 of physicians who responded to the questionnaire found AGP easy or very easy to use; 11/15 found the report easy to interpret and 13/15 felt that they could interpret it intuitively, without the need for formal training.
Usefulness in clinical practice
It was agreed by 12/14 respondents that AGP was useful or very useful in clinical practice and 11/15 agreed that it enabled better understanding of a patient’s glycaemic control in comparison with other methods of analysing CGM data. Feedback confirmed that the system enabled the clinician to quickly establish where the main problems in glycaemic control occurred and to consider potential solutions. Of the respondents, 14/15 used the AGP reports in discussion with their patients and, of these, 13/14 agreed that this was useful and served as an educational tool in helping a patient’s overall understanding of their diabetes. The respondents considered the role of AGP in patient education as its greatest potential benefit, helping patients better understand their glycaemic control and to become more involved in the management of their diabetes.
Clinical utility of AGP
Respondents identified the main clinical situations where AGP was considered of value as:
• Identifying reasons for a mismatch between the patient’s glycaemic profile and HbA1c results
• Assessing a patient’s glucose levels versus target range
• Understanding extent and causes of high blood glucose variability
• Assessing suitability of treatment
• Assessing whether it is safe to increase insulin dose
It was suggested that AGP would be less useful for patients who have poor adherence to treatment, or where there is no information available on food and carbohydrate intake, or physical activity. Furthermore, AGP was identified as not being as valuable for patients who are reluctant to make changes to improve their glycaemic control.
A majority (12/15) of respondents agreed that AGP will indicate direction for clinical decision-making on potential changes to the prescribed intervention and 13/15 would recommend its use to other healthcare professionals caring for people with diabetes.
The results of this study support previously published evidence that AGP represents a potentially useful tool for analysing individual patient glucose data, and that this approach clearly highlights trends in the variability of a glucose profile, informing subsequent treatment decisions.13,18,19 The feedback received in this study suggests a key role for AGP as a tool for patient education.
The responses suggest that AGP enables a better understanding of a patient’s glycaemic control in comparison with other methods of CGM data, in particular, the availability of an IQR was considered to be more valuable. It was reported that the evaluation of glucose variability, and hypoglycaemic risk was easier than the Medtronic iPro2 system. However, the insulin dose information available on the Medtronic CareLink Pro was considered to be a benefit that is not present in this version of the AGP report.
As the use of AGP in clinical practice is not yet well reported in the published literature, it remains important to identify in which clinical situations AGP may provide most value. It is clear that the patient’s treatment regimen, their adherence, and typical food intake must be considered alongside the AGP report. Daily data should also be reviewed as individual hypoglycaemic episodes may be missed. Therefore, the best method of interpreting the report needs to be established, and this has been identified as an area for future investigation.
In conclusion, AGP is a useful tool for clinical practice in Europe. It offers easily interpretable insights to glycaemic variability, which helps healthcare professionals to readily identify areas of concern and suggest possible solutions.
Conflict of interest S Matthaei has received speaker fees and consultancy fees from Abbott Diabetes Care.
Funding sources This article was initiated and paid for by Abbott Diabetes Care, who provided FreeStyle Navigator Continuous Glucose Monitoring Systems.
None of the AGP working group members received payment for their participation.
Acknowledgements Medical writing support in the form of editing, referencing, journal liaison and factual accuracy checking, has also been provided. However, the views expressed are those of the author.
