Umesh Dashora,1 Alison Gallagher,2 Ketan Dhatariya,3 Peter Winocour4 And Rob Gregory2 On Behalf of the ABCD Committee
1 Conquest Hospital, Hastings, UK
2 University Hospitals of Leicester NHS Trust, UK
3 Norfolk and Norwich University Hospitals NHS Foundation Trust, Norwich, UK
4 East and North Herts NHS Trust, Hertfordshire, UK
Address for correspondence: Dr Umesh Dashora
Consultant physician and Lead, Diabetes and Endocrinology,
East Sussex Healthcare NHS Trust, UK.
Tel: +44 (0)1424 755255
E-mail: u.dashora@nhs.net
http://dx.doi.org/10.15277/bjd.2016.112
Diabetic Ketoacidosis (DKA) has been reported in patients with diabetes taking SGLT-2 inhibitor drugs both in clinical trials and in real life situations, particularly amongst patients taking insulin. The US Food and Drug Administration (FDA) has issued a safety communication following 20 cases of DKA in patients receiving these drugs.1 This concern has also prompted an American Association of Clinical Endocrinologists and American College of Endocrinology position statement covering the use of SGLT-2 inhibitors in people with type 2 diabetes.2 The following is the ABCD position statement on this issue.
Br J Diabetes 2016;16:206-209
Key words: SGLT-2 inhibitors, diabetic ketoacidosis, ABCD
The absolute risk of DKA with SGLT-2 inhibitors is unclear but the current reported incidence of SGLT-2 inhibitor associated DKA is likely to be an underestimate due to the unusual presentation of these patients and a lack of general awareness of this complication. In the cardiovascular outcome trials with this group of drugs DKA was not anticipated and hence there was no requirement to systematically look for its development which is likely to have contributed to under reporting of this complication.3 The current clinical trial protocols in patients with type 1 diabetes require more in-depth recording of DKA.
DKA frequency in the background diabetic population has been reported to be between 0.32 and 7.1 per 1000 patient-years, of which 23-32% are thought to be in patients with type 2 diabetes.2,4-6 Clinical trials with SGLT-2 inhibitors in type 2 diabetes reported an incidence of DKA in the range of 0.2 to 1.2 per 1000 patient-years.2,7,8 A much higher incidence was reported in trials with type 1 diabetes.9-15 There were 147 cases recorded in the EudraVigilance database in the post marketing phase of the SGLT-2 inhibitors.16 A recent meta-analysis of 10 eligible RCTs involving 13,134 patients and 14 DKA events found an overall event rate of 0.1% in the SGLT-2 inhibitor group versus 0.06% in the control group (ns).17 This data, however, is based on protocols which did not require systematic detection or reporting of DKA and hence may be an underestimate.
The majority of cases of SGLT-2 inhibitor associated DKA have occurred in people with type 1 diabetes including latent autoimmune diabetes in adults (in general people with insulin deficiency). Some cases are thought to have occurred in patients with a prolonged history of type 2 diabetes and reduced beta cell reserve.18
In the canagliflozin clinical trials 6 of the 12 patients that developed ketoacidosis had low C-peptide levels (<0.51 ng/mL) and were positive for GAD65 autoantibodies.2 In the American series that resulted in the FDA warning, 7 of 9 patients had type 1 diabetes.2
Many reported cases simply represent a shift of metabolism from a glucose-dependent one to a fat-dependent one resulting in ketonuria and ketosis and, in extreme cases, ketoacidosis. SGLT-2 inhibitors can produce this shift in people with or without diabetes leading to reduced plasma glucose and insulin levels, stimulation of endogenous glucose production and suppression of glucose disposal.19 Full dose SGLT- 2 inhibition induces glucose excretion ranging from 50-100 g/day.20 In a typical patient this could amount to 17-57% of carbohydrate intake.21 In SGLT-2 inhibitor treated patients with type 2 diabetes, a lower insulin to glucagon ratio leads to nearly 40% higher lipolysis after a meal, 20% higher fat oxidation, 60% lower carbohydrate oxidation, 15% lower glycogen synthesis and two fold higher ketogenesis.22,23 This may not necessarily be harmful and may indeed be desirable to reduce fat in the body. In fact, it has been hypothesised that preferential energy efficient utilisation of beta hydroxybutyrate as a substrate by the myocardium and kidneys may partly underlie the swift cardiovascular and renal benefits that have been seen in the EMPA-REG trial.24,25
Asymptomatic ketosis, which is not clinically relevant in type 2 diabetes, may become crucial in type 1 diabetes particularly if insulin dose is low and there are additional factors which promote ketogenesis.23
Usually, in the cases of DKA reported in association with SGLT-2 inhibitors, there is a precipitating factor both in patients with type 1 and type 2 diabetes. This might be surgery, exercise, myocardial infarction, stroke, severe infection, prolonged fasting, excessive alcohol consumption, serious injury, hypovolaemia, pancreatitis, marathon running or a very low calorie diet.23 These factors may cause a stress induced shift of metabolism from carbohydrate to fat dependence.
When certain high risk patients are faced with particular metabolic stress ketone production exceeds ketone clearance from the body. There might be many pathophysiological mechanisms underlying this state including relative insulin deficiency, glucagon excess promoting a shift of metabolism towards fat, increased glycogenolysis and gluconeogenesis because of insulin lack and glucagon excess, insulin resistance increased by lipolysis, an increase in counter regulatory hormones and reduced glucose utilisation by tissues.26
SGLT-2 inhibition in pancreatic alpha cells may result in increased glucagon production because of reduced paracrine inhibition by insulin and SGLT mediated glucose transfer into alpha cells.26-28
By their effect on renal tubules SGLT-2 inhibitors may mimic starvation status and cause an increase in ketone production and renal re-absorption as has been documented with phlorizin.26,29-33
Lower than expected hyperglycaemia in SGLT-2 inhibition associated with DKA may be a result of a combination of factors including partial treatment of DKA, fasting or carbohydrate avoidance, dehydration, alcohol consumption and glycosuria.34,35
Presentation of DKA in these patients is usually typical with classical symptoms and high glucose levels. However, some reported cases have presented with lower than expected hyperglycaemia. This type of euglycaemic, or lower than expected, hyperglycaemic ketoacidosis has previously been described.34-36
In the cases described to date, blood glucose levels have not been consistently reported. The lowest reported level was 5 mmol/L and 13 cases have been reported with levels below 10 mmol/L. The majority, however, had glucose levels above 13.8 mmol/L.2 There does not appear to be a fixed level of glucose below which DKA can be excluded with certainty. Some of these patients may not be admitted directly under the care of a diabetes specialist due to the absence of hyperglycaemia.

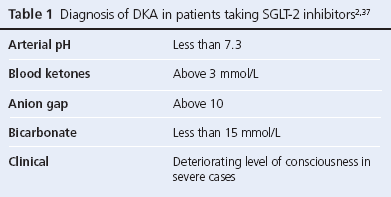

Diabetic ketoacidosis, which may be euglycaemic (euDKA), should be considered in all patients taking SGLT-2 inhibitors who present with typical symptoms of diabetic ketoacidosis such as abdominal pain, nausea, vomiting, fatigue, and dyspnoea and an appropriate workup should be carried out as per JBDS guidelines.37
The diagnosis should not depend upon the presence of ketones in the urine (which may be false negative because of increased resorption or may be present but not associated with ketosis or ketoacidosis) or even blood ketones but should be based on low bicarbonate (<15.0 mmol/L), low pH (<7.3) and quantitative excess of blood ketones over the limit that is considered diagnostic of DKA i.e. 3.0 mmol/L. Glucose level is lowered as a result of glycosuria induced by SGLT-2 inhibitors but ketosis is exaggerated by actual or relative insulin deficiency. Glucose levels are usually higher than 11 mmol/L but can be lower and, therefore, in a person known to have diabetes the diagnosis of diabetic ketoacidosis should always be considered even if blood glucose levels are normal.38 This is particularly relevant in patients taking SGLT-2 inhibitors (Table 1).
Once DKA is confirmed, ABCD advises to stop the SGLT-2 inhibitor immediately and treat ketoacidosis with existing Trust or JBDS protocol.37 The focus of treatment is to correct pH, bicarbonate and the anion gap. A variable rate intravenous insulin infusion (VRIII) with dextrose and potassium rather than a fixed rate insulin infusion may be needed to avoid hypoglycaemia and hypokalaemia.
Despite stopping an SGLT-2 inhibitor the associated increase in urinary glucose loss and, therefore, fat dependent metabolism may persist for several days.
1. Avoid or stop SGLT-2 inhibitors in situations likely to shift metabolism to a catabolic state rather than anabolic state i.e. at least 24 hours prior to a major elective surgery, planned invasive procedures or an anticipated severe stressful physical or mental activity such as running a marathon. The effect on glycosuria may persist for a few days after the drug is stopped.2
2. The drug should also be stopped prior to emergency surgery or situations of extreme stress like major trauma.
3. Interrupt treatment with the SGLT-2 inhibitor in patients who are hospitalised for major surgery or acute serious illness. Treatment may be restarted once the patient’s condition has stabilised.39

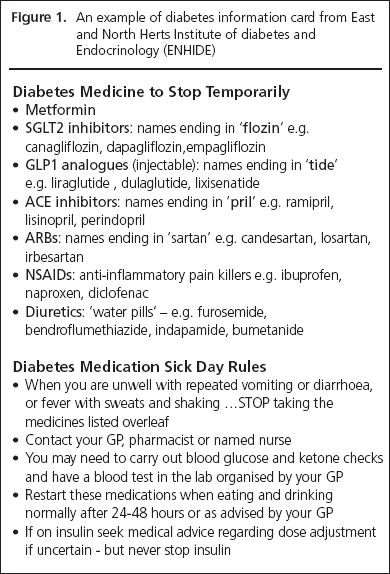

4. Pre-printed educational medication cards like the one in use at East and North Herts Institute of Diabetes and Endocrinology (ENHIDE) might help reduce complications of SGLT-2 inhibitors and other medication which might potentially cause harm during acute illness (Figure 1).
5. Avoid excess alcohol intake and very low calorie diets when taking SGLT-2 inhibitors.
6. When SGLT-2 inhibitors are used glucose levels may drop triggering a reduction in insulin dose which should be monitored carefully as insulin deficiency may precipitate ketosis and subsequent acidosis in patients who are relatively insulin deficient.
7. In patients taking SGLT-2 inhibitors, if there are any symptoms suggestive of diabetic ketoacidosis for example vomiting and abdominal pain, blood ketones should be measured in addition to urinary ketones. Urinary ketones may be negative because of increased ketone resorption and plasma glucose may not be particularly high. As patients with type 2 diabetes may not have meters to test blood ketones, they may have to visit their GP or nearest hospital for blood ketone testing.
8. ABCD strongly emphasises that SGLT-2 inhibitors are not currently approved for use in type 1 diabetes. However, if these are used off-label or in clinical trials, insulin dose should not be reduced in response to a reduction in blood glucose levels without careful consideration of the risk of ketoacidosis and ketone monitoring.
9. ABCD strongly advise that patients with type 1 diabetes prescribed an SGLT-2 inhibitor should give informed consent that makes them fully aware of the potential for euglycaemic diabetic ketoacidosis (euDKA), the precipitating factors, the warning symptoms and signs and the preventive measures to adopt.23,39 Written advice and guidance should be provided for these patients.
10. In patients taking insulin who are being treated as having type 2 diabetes similar considerations should apply before reducing insulin dose and as insulin dose is reduced.
DKA occurs infrequently in patients with type 2 diabetes taking SGLT-2 inhibitors and ABCD believes that the risk-benefit ratio currently overwhelmingly favours continuing the current practice of using SGLT-2 inhibitors with no change in current recommendations as long as their use is within licensed indications.
There should, however, be provision for education, training guidelines and prompts in clinical systems to warn clinicians that the diagnosis of DKA may be missed in patients prescribed SGLT-2 inhibitors because of lower than anticipated glucose levels. The diagnosis of DKA should be considered when patients from high risk groups and with high risk conditions present with acidosis or symptoms compatible with acidosis.
The potential benefit of using SGLT-2 inhibitors in addition to insulin in type 1 diabetes is a reduction in insulin dose and less weight gain. The risk of DKA is higher in these patients but can possibly be mitigated by using a lower SGLT-2 dose, avoiding sharp reductions in insulin dose and regular monitoring of ketones particularly in high risk situations.
The above recommendations should also be considered in patients with type 2 diabetes taking SGLT- 2 inhibitors particularly in those patients likely to have low beta cell reserve.
In general, the rate and prevalence of DKA in people with type 2 diabetes taking SGLT-2 inhibitors is very low and does not warrant a change in practice in the use of these agents.
In patients with type 1 diabetes or insulin treated type 2 diabetes it would make pragmatic sense to anticipate and monitor for possible DKA in situations which are known to precipitate metabolic decompensation (injury, infections, stressful events and catabolic states).
There should be prompts to identify patients attending Emergency Departments or Medical Admissions Units who are prescribed SGLT-2 inhibitors to warn of the possibility of euDKA. SGLT-2 inhibitors should be discontinued in patients who have developed DKA and should not be restarted unless a clear alternative cause of DKA is identified.
Conflict of interest None.
Funding None.
Published online only @www.bjd-abcd.com
1. U.S. Food and Drug Administration. FDA Drug Safety Communication: FDA warns that SGLT2 inhibitors for diabetes may result in a serious condition of too much acid in the blood. Bethesda, MD: U.S. Food and Drug Administration; 2015. Available at: http://www.fda.gov/Drugs/DrugSafety/ ucm446845.htm (accessed June, 2016).
2. Handelsman Y, Henry RR, Bloomgarden ZT, et al. American Association of Clinical Endocrinologists and American College of Endocrinology position statement on the association of SGLT-2 inhibitors and diabetic ketoacidosis. Endocr Pract. 2016 Jun 1. [Epub ahead of print]. Available at: https://www.aace.com/files/position-statements/SGLT-2-position-statement.pdf (accessed June, 2016).
3. Dhatariya K. Comment on Erondu et al. Diabetic Ketoacidosis and Related Events in the Canagliflozin Type 2 Diabetes Clinical Program. Diabetes Care 2015;38:1680-1686. Diabetes Care 2016;39:e18. https://doi.org/10.2337/dc15-1956
4. Centers for Disease Control and Prevention. NCHS National Hospital Discharge Survey. Atlanta, GA: Centers for Disease Control and Prevention; 2010. Available at: http://www.cdc.gov/nchs/nhds/nhds_tables.htm (accessed June , 2016).
5. Centers for Disease Control and Prevention. Diabetes Public Health Resource: crude and age-adjusted hospital discharge rates for diabetic ketoacidosis (DKA) as first-listed diagnosis per 1,000 diabetic population, United States, 1988-2009. Atlanta, GA: Centers for Disease Control and Prevention; 2016. Available at: http://www.cdc.gov/diabetes/statistics/dkafirst/fig3.htm (accessed June, 2016).
6. Wang ZH, Kihl-Selstam E, Eriksson JW. Ketoacidosis occurs in both type 1 and type 2 diabetes—a population-based study from Northern Sweden. Diabet Med 2008;25:867-870. https://doi.org/10.1111/j.1464-5491.2008.02461.x
7. Erondu N, Desai M, Ways K, et al. Diabetic ketoacidosis and related events in the Canagliflozin Type 2 Diabetes Clinical Program. Diabetes Care 2015;38:1680-1686. https://doi.org/10.2337/dc15-1251
8. Zinman B, Wanner C, Lachin JM, et al. Empagliflozin, cardiovascular outcomes, and mortality in type 2 diabetes. N Engl J Med 2015;373:2117-2128. https://doi.org/10.1056/NEJMoa1504720
9. Henry RR, Thakkar P, Tong C, et al. Efficacy and safety of canagliflozin, a sodium glucose cotransporter 2 inhibitor, as add-on to insulin in patients with type 1 diabetes. Diabetes Care 2015;38:2258-65. https://doi.org/10.2337/dc15-1730
10. Peters AL, Henry RR, Thakkar P, et al. Diabetic Ketoacidosis With Canagliflozin, a Sodium–Glucose Cotransporter 2 Inhibitor, in Patients With Type 1 Diabetes. Diabetes Care 2016;39:532-8. https://doi.org/10.2337/dc15-1995
11. Henry RR, Rosenstock J, Edelman S, et al. Exploring the potential of the SGLT2 inhibitor dapagliflozin in type 1 diabetes: a randomized, double-blind, placebo-controlled pilot study. Diabetes Care 2015;38:412-19. https://doi.org/10.2337/dc13-2955
12. Tamez HE, Tamez AL, Garza LA, et al. Dapagliflozin as an adjunct therapy to insulin in the treatment of patients with type 1 diabetes mellitus. J Diabetes Metab Disord 2015;14:78. https://doi.org/10.1186/s40200-015-0210-x
13. Perkins BA, Cherney DZ, Partridge H, et al. Sodium glucose cotransporter 2 inhibition and glycemic control in type 1 diabetes: results of an 8-week open-label proof-of concept trial. Diabetes Care 2014;37:1480-83. https://doi.org/10.2337/dc13-2338
14. Pieber TR, Famulla S, Eilbracht J, et al. Empagliflozin as adjunct to insulin in patients with type 1 diabetes: a 4-week, randomized, placebo-controlled trial (EASE-1). Diabetes Obes Metab 2015;17:928-35. https://doi.org/10.1111/dom.12494
15. Sands AT, Zambrowicz BP, Rosenstock J, et al. Sotagliflozin, a dual SGLT1 and SGLT2 inhibitor, as adjunct therapy to insulin in type 1 diabetes. Diabetes Care 2015;38:1181-88. https://doi.org/10.2337/dc14-2806
16. Julicher S. Notification to the PRAC/EMA Secretariat of a referral under article 20 of regulation (EC) 726/2004. London, UK: European Medicines Agency; 2015. Available at: http://www.ema.europa.eu/docs/en_GB/document_ library/Referralsdocument/SGLT2_inhibitors__20/ Procedure started/ WC500187925.pdf (accessed June,
17. Tang H, Li D, Wang T, et al. Effect of Sodium–Glucose Cotransporter 2 Inhibitors on Diabetic Ketoacidosis Among Patients With Type 2 Diabetes: A Meta-analysis of Randomized Controlled Trials. Diabetes Care 2016 Jun 14:dc160885. https://doi.org/10.2337/dc16-0885
18. West K, Webb LA, Fenech M, et al. Possible risk factors for the development of sodium-glucose co-transporter 2 inhibitor-associated diabetic ketoacidosis in type 2 diabetes. British Journal of Diabetes 2016;16:78-81. https://doi.org/10.15277/bjd.2016.079
19. Ferrannini E, Baldi S, Frascerra S, et al. Shift to Fatty Substrate Utilization in Response to Sodium–Glucose Cotransporter 2 Inhibition in Subjects Without Diabetes and Patients With Type 2 Diabetes. Diabetes 2016;65:1190-5. https://doi.org/10.2337/db15-1356
20. Sha S, Devineni D, Ghosh A, et al. Canagliflozin, a novel inhibitor of sodium glucose co-transporter 2, dose dependently reduces calculated renal threshold for glucose excretion and increases urinary glucose excretion in healthy subjects. Diabetes Obes Metab 2011;13:669-72. https://doi.org/10.1111/j.1463-1326.2011.01406.x
21. Ferrannini E, Veltkamp SA, Smulders RA, et al. Renal glucose handling: impact of chronic kidney disease and sodium-glucose cotransporter 2 inhibition in patients with type 2 diabetes. Diabetes Care 2013;36:1260-5. https://doi.org/10.2337/dc12-1503
22. Ferrannini E, Muscelli E, Frascerra S, et al. Metabolic response to sodium-glucose cotransporter 2 inhibition in type 2 diabetic patients. J Clin Invest 2014;124:499-508. https://doi.org/10.1172/JCI72227
23. Rosenstock J, Ferrannini E. Euglycemic diabetic ketoacidosis: a predictable, detectable, and preventable safety concern with SGLT2 inhibitors. Diabetes Care 2015;38:1638-42. https://doi.org/10.2337/dc15-1380
24. Ferrannini E, Mark M, Mayoux E. CV Protection in the EMPA-REG OUTCOME Trial: A “Thrifty Substrate” Hypothesis. Diabetes Care 2016 Jun 10:dc160330.
25. Mudaliar S, Alloju S, Henry RR. Can a Shift in Fuel Energetics Explain the Beneficial Cardiorenal Outcomes in the EMPA-REG OUTCOME Study? A Unifying Hypothesis. Diabetes Care 2016 Jun 10:dc160542. https://doi.org/10.2337/dc16-0542
26. Taylor SI, Blau JE, Rother KI. SGLT2 inhibitors may predispose to ketoacidosis. The Journal of Clinical Endocrinology & Metabolism 2015;100:2849-52. https://doi.org/10.1210/jc.2015-1884
27. Maruyama H, Hisatomi A, Orci L, et al. Insulin within islets is a physiologic glucagon release inhibitor. J Clin Invest 1984;74:2296-9. https://doi.org/10.1172/JCI111658
28. Bonner C, Kerr-Conte J, et al. Inhibition of the glucose transporter SGLT2 with dapagliflozin in pancreatic alpha cells triggers glucagon secretion. Nat Med 2015;21:512-17. https://doi.org/10.1038/nm.3828
29. Kaku K, Watada H, Iwamoto Y, et al. Efficacy and safety of monotherapy with the novel sodium/glucose cotransporter-2 inhibitor tofogliflozin in Japanese patients with type 2 diabetes mellitus: a combined Phase 2 and 3 randomized, placebo-controlled, double-blind, parallel-group comparative study. Cardiovasc Diabetol 2014;13:65. https://doi.org/10.1186/1475-2840-13-65
30. Devenny JJ, Godonis HE, Harvey SJ, et al. Weight loss induced by chronic dapagliflozin treatment is attenuated by compensatory hyperphagia in diet-induced obese (DIO) rats. Obesity (Silver Spring). 2012;20:1645-52. https://doi.org/10.1038/oby.2012.59
31. Yokono M, Takasu T, Hayashizaki Y, et al. SGLT2 selective inhibitor ipragliflozin reduces body fat mass by increasing fatty acid oxidation in high-fat diet-induced obese rats. Eur J Pharmacol 2014;727:66-74. https://doi.org/10.1016/j.ejphar.2014.01.040
32. Cohen JJ, Berglund F, Lotspeich WD. Renal tubular reabsorption of acetoacetate, inorganic sulfate and inorganic phosphate in the dog as affected by glucose and phlorizin. Am J Physiol 1956;184:91-96.
33. Cahill GF, Jr. Fuel metabolism in starvation. Annu Rev Nutr 2006;26:1-22. https://doi.org/10.1146/annurev.nutr.26.061505.111258
34. Burge MR, Garcia N, Qualls CR, et al. Differential effects of fasting and dehydration in the pathogenesis of diabetic ketoacidosis. Metabolism 2001;50:171-7. https://doi.org/10.1053/meta.2001.20194
35. Peters AL, Buschur EO, Buse JB, et al. Euglycemic diabetic ketoacidosis: a potential complication of treatment with sodium-glucose cotransporter 2 inhibition. Diabetes Care 2015;38:1687-93. https://doi.org/10.2337/dc15-0843
36. Kitabchi AE, Umpierrez GE, Miles JM, et al. Hyperglycemic crises in adult patients with diabetes. Diabetes Care 2009;32:1335-43. https://doi.org/10.2337/dc09-9032
37. Savage MW, Dhatariya KK, Kilvert A et al. Joint British Diabetes Societies guideline for the management of diabetic ketoacidosis. Diabetic Medicine 2011;28:508-15. https://doi.org/10.1111/j.1464-5491.2011.03246.x
38. Dhatariya K. The use of point-of-care blood ketone monitors in the management of diabetic ketoacidosis in adults. Ann Clin Biochem 2014;51:525-7. https://doi.org/10.1177/0004563214540136
39. Medicines and healthcare products regulatory agency. SGLT2 inhibitors: updated advice on the risk of diabetic ketoacidosis, 2016. Available at https://www.gov.uk/drug-safety-update/sglt2-inhibitors-updated-advice-on-the-risk-of-diabetic-ketoacidosis (accessed July 2016)
